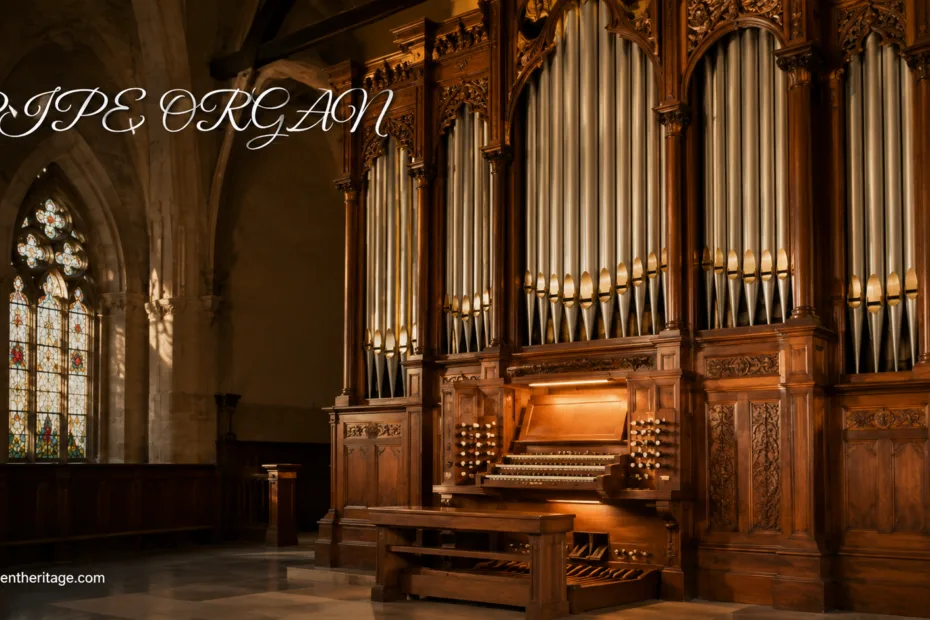

Pipe Organ: The Monumental Instrument of Churches and Concert Halls

A pipe organ is not simply a large keyboard with pipes standing above it. It is a coordinated system of air reservoirs, valves, windchests, linkages, electrical controls and tuned resonators, all shaped around the acoustics of one room. Press a key and the player does not strike or pluck anything. A valve opens. Air enters the chosen pipe, the air column begins to vibrate, and a sustained tone appears for as long as the key remains down.

That basic act can produce a quiet wooden flute, a narrow string-like tone, a firm principal chorus or a bright reed color. Several sounds may be layered under one pair of hands, while the feet play an independent bass line. The result is an instrument with orchestral range, yet its sound is made entirely through pipes and moving air.

• 🎹 Keyboard aerophone
• 💨 Wind-powered tone
• 🎼 Polyphonic instrument
• 🪵 Wood and metal pipes
• 🏛 Room-specific design

🎹 What Makes a Pipe Organ a Pipe Organ?

The pipe organ belongs to the aerophone family because vibrating air creates its sound. It differs from a flute or oboe because the player does not blow directly into one tube. A wind system supplies steady pressure, keyboards select pitches, and stops choose which families of pipes are allowed to speak.

Each pipe normally produces one pitch with one basic tone color. This explains the instrument’s scale. A single 61-note manual rank needs roughly 61 pipes. Add more tonal colors, a pedal division and extra upperwork, and the pipe count rises fast. Many of the pipes remain hidden behind the façade, arranged in rows on windchests like a dense workshop of sound.

Organ, Pipe Organ and Church Organ

The word organ can describe several keyboard instruments, including electronic organs and reed organs. Pipe organ is the clearest name when actual sounding pipes are present. The phrase church organ describes location and use rather than a separate construction type. Concert-hall organs, chapel organs and residence organs all work from the same broad pipe-and-wind principle.

💨 How the Mechanism Turns a Key Press into Sound

Wind Supply: The Organ’s Steady Breath

Modern organs usually use an electric blower to move air into one or more reservoirs. The reservoirs stabilize pressure so that a large chord does not leave the instrument gasping. Earlier organs relied on hand-operated or foot-operated bellows, often worked by assistants. Some restored historical instruments still use this older method during demonstrations and performances.

Organ builders call the supplied air wind. Its pressure is measured and regulated with care because pressure affects speech, tone, attack and tuning behavior. High pressure is not automatically better. A gentle flute stop and a commanding solo reed may need very different conditions.

Windchests, Pallets and Sliders

The windchest sits beneath the pipes and distributes air. In a traditional slider chest, pressing a key opens a pallet valve for one note, while pulling a stop positions a slider so air can reach a chosen rank. The note selection and tone-color selection cross each other inside the chest. Only the pipe located at that meeting point speaks.

This arrangement explains why one key can sound several pipes at once. Pull an 8′ principal, a 4′ octave and a 2′ fifteenth, then play middle C: three C pipes speak together at different octave levels. Add a mixture stop and several more pipes may join the same note. Yamaha’s instrument guide describes this selection system as a matrix formed by the manuals, stops, sliders and windchest channels.Reference-1✅

Mechanical, Pneumatic and Electric Action

1. Mechanical tracker action: Keys connect to valves through rods, levers and trackers. The player can often feel the valve movement through the key.
2. Pneumatic action: Air pressure helps transmit the player’s command. This allowed larger layouts and lighter key touch in many nineteenth-century instruments.
3. Electro-pneumatic action: An electrical signal triggers a small pneumatic motor or action component at the windchest.
4. Direct electric action: Electromagnets open valves without a pneumatic stage, allowing flexible console placement and complex control systems.

Action choice affects more than engineering. It changes touch, timing and physical feedback. A tracker organ can feel closely tied to the valve under the pipe. An electric-action console may allow the organist to control distant divisions, movable consoles and large stop combinations with ease.

Manuals, Pedalboard and Divisions

The hand keyboards are called manuals. A small organ may have one; a large concert instrument may have four or five. Each manual usually controls a division with its own tonal purpose, such as Great, Swell, Choir, Positive or Solo. Names vary by region and design tradition.

The pedalboard is a keyboard for the feet. It handles bass lines, sustained foundations, independent melodies and occasional solos. Organists often play with the heels and toes, shifting weight with controlled leg movement. The pedal part is not an accessory. In much of the repertoire, it acts like a third hand with a deeper voice.

Stops, Couplers and Combination Controls

A stop makes a pipe family available. Stop controls may appear as drawknobs, tabs, rocking tablets or digital controls linked to physical pipework. Couplers connect keyboards to one another, allowing one manual or the pedalboard to play pipes assigned elsewhere. Pistons store or recall combinations, which lets the organist change color during a piece without moving every stop by hand.

🎼 Pipes, Materials and Tone Families

Flue Pipes

Flue pipes make sound through a principle related to a recorder. Wind passes through a narrow opening, strikes a sharp lip and sets the air column inside the pipe into vibration. There is no beating reed. The pipe’s length sets the broad pitch range, while diameter, shape, mouth geometry and material influence tone.

• Principal pipes provide the organ’s characteristic singing tone and form the main chorus.
• Flute pipes may be open, stopped, tapered or chimney-shaped, producing colors from hollow and soft to bright and lively.
• String-toned pipes are usually narrow-scaled, with a keen upper spectrum and restrained body.
• Mutation and mixture ranks add upper partials rather than only octave pitches, strengthening brilliance and harmonic definition.

Reed Pipes

Reed pipes use a thin metal tongue that vibrates against or near a shallot. A resonator above the reed shapes and projects the tone. Trumpet, oboe, clarinet, posaune and vox humana are common stop-name families, though their sound remains organ tone rather than a literal copy of an orchestral instrument.

Reeds can sound fiery, nasal, smooth, round or weighty. They also react strongly to temperature and mechanical adjustment. The tuning wire, tongue curve, shallot opening and resonator all matter. A good reed has presence without losing pitch center.

Open, Stopped and Tapered Forms

An open pipe speaks at a pitch related to its full air-column length. A stopped pipe is closed at the top and sounds roughly an octave lower than an open pipe of similar physical length. It also favors odd-numbered harmonics, often producing a more covered tone. Tapered pipes shift the balance of harmonics again, which is why form matters as much as raw length.

Metal Pipes

Traditional metal organ pipes are often made from alloys of tin and lead. Higher tin content generally produces a harder, brighter-looking metal that holds a crisp surface; lead-rich alloys are softer and easier to work. Zinc often appears in large bass pipes where strength and economy are useful. Copper is less common but visually and tonally distinctive.

The alloy does not act alone. Wall thickness, pipe scale, mouth proportions, wind pressure and voicing decisions can outweigh simple material labels. Two pipes made from similar metal may sound quite different.

Wooden Pipes

Wooden pipes are built as boxes with carefully fitted seams. Softwoods are common for larger stopped flutes and pedal pipes, while denser woods may be used for caps, blocks, boots or smaller specialty ranks. Grain direction, seasoning and stable joinery matter because leaking seams waste wind and disturb speech.

Wood is also used far beyond the pipes: windchests, reservoirs, trackers, casework, keyboards and structural frames all depend on it. Historic organs may combine mahogany, pine, maple, walnut, rosewood veneer, leather, metal and decorative gilding in one integrated structure. The Metropolitan Museum of Art’s 1830 Thomas Appleton organ, for example, retains 836 pipes within a tall case built from varied woods and metals, showing how organ building joins cabinetmaking, metalwork and acoustical craft.Reference-2✅

What 16′, 8′, 4′ and 2′ Mean

Foot-length labels describe pitch level by reference to the approximate speaking length of the lowest open pipe in a traditional rank. An 8′ stop sounds at written pitch. A 4′ stop sounds one octave higher, a 2′ stop two octaves higher, and a 16′ stop one octave lower. A 32′ stop reaches another octave below 16′ and may be felt as much as heard in a large room.

Mutation stops use intervals other than octaves. A 2 2/3′ rank adds a twelfth above the played note, while a 1 3/5′ rank adds a seventeenth. Used alone, they can sound unusual. Blended into a registration, they sharpen color and suggest new tone families.

🏛 The Pipe Organ’s Long Development

The Hydraulis and the Idea of Controlled Wind

The organ’s ancestry is commonly linked to the hydraulis, associated with the Hellenistic engineer Ctesibius. Water did not flow through the sounding pipes. It helped regulate air pressure, giving the instrument a more stable wind supply. Keys, levers or sliders admitted air to selected pipes.

This early principle already contains the organ’s central idea: store and regulate air, then distribute it to separate tuned pipes under the player’s control. Later bellows replaced water-pressure systems. Keyboards grew more practical, pipe families multiplied, and the organ became capable of sustained polyphony. The Metropolitan Museum of Art traces this relationship through the hydraulis, medieval portative organs and Renaissance forms.Reference-3✅

Portable and Positive Organs

Medieval and Renaissance makers built organs in several sizes. A portative organ could be carried or played on the lap, with one hand on the keys and the other working a bellows. A positive organ was larger but still movable, often placed on a table or stand. These smaller forms served vocal music, chamber ensembles and ceremonial settings where a permanent large organ was not needed.

Large fixed instruments developed a different identity. More pipes meant more pitch levels and tone families, while larger cases allowed stronger bass and broader choruses. Builders learned to divide the organ into separate departments controlled from different manuals.

Renaissance Color and Baroque Clarity

Renaissance organs often favored clear principal tone, colorful flutes and reeds, and flexible combinations suited to vocal and instrumental music. During the Baroque period, regional styles became more distinct. Northern European instruments often developed strong independent pedal divisions and brilliant choruses. Iberian builders became known for divided stops and horizontal reeds. French classical organs organized characteristic families for plein jeu, grand jeu and solo colors. Italian instruments often preserved a direct, vocal principal sound with elegant upperwork.

These were not fixed formulas. Local materials, musical practice, room shape, builder tradition and available craftsmanship all influenced the instrument. An organ was a local voice.

The Symphonic Organ

Nineteenth-century builders expanded wind systems, expression devices, reed choruses and orchestral colors. Swell boxes with movable shutters gave players a practical way to shape crescendos and diminuendos. Pneumatic and electrical systems later made it possible to control larger instruments without placing every division close to the keyboard.

Concert halls encouraged organs with broad dynamic range, commanding solo reeds and enough tonal weight to balance orchestras and large audiences. Builders also refined softer strings, harmonic flutes, celestes and enclosed divisions. The instrument could whisper. Then it could fill the hall.

Twentieth-Century Variety and Present-Day Building

The twentieth century brought several parallel paths. Some builders pursued orchestral breadth, remote divisions and advanced electric controls. Others renewed interest in mechanical action, classical scaling and historically informed voicing. Many present-day organs combine old craft with modern engineering: hand-finished pipes, wooden windchests and tracker linkages may work beside digital combination systems and computer-assisted control.

Restoration has become a craft of its own. A restorer may preserve old pipework, leather, wind pressure, temperament and key action rather than forcing an older organ to behave like a new one. The aim is often to recover the builder’s original musical language while keeping the instrument dependable for regular use.

🔊 The Room Is Part of the Instrument

A violin carries its acoustic body wherever it goes. A pipe organ usually cannot. Its pipes are voiced in relation to a particular room, and that room changes attack, blend, clarity and decay. Stone, plaster, wood paneling, curtains, upholstered seating and audience size all alter what reaches the listener.

Reverberation and Musical Pacing

Long reverberation can merge rapid notes into a glowing wash. Short reverberation reveals articulation but may leave thin registrations exposed. Organists adapt tempo, phrasing and note release to the room. A detached touch in a resonant church may sound smoothly connected at a distance, while the same touch in a dry hall can feel clipped.

The audience position matters too. Near the console, mechanical sounds and direct pipe attack may be obvious. Farther away, divisions blend and bass develops. Under a gallery, some high frequencies may soften. In the center of a concert hall, the tonal picture can become more balanced.

Voicing for the Building

Voicing is the fine adjustment of each pipe’s speech and tone. The voicer works with toe openings, flueways, languids, upper lips, pipe mouths, reed tongues and resonators. The aim is not merely to make every pipe sound. It is to make each rank speak evenly, blend with its neighbors and carry properly into the room.

A façade principal that sounds balanced in a workshop may become too sharp in a reflective stone room. A flute that seems delicate nearby may carry beautifully through a long nave. Final voicing therefore happens in the building, often note by note. Acoustic fit is part of construction.

Churches and Concert Halls Ask for Different Things

👐 What Playing a Pipe Organ Feels Like

Organ technique begins with a strange fact for pianists: the key does not control loudness in the usual touch-sensitive way. Pressing harder does not make a pipe louder. Dynamics come from registration, expression shutters, texture, octave level and the number of pipes speaking.

Touch still matters. The timing of key depression and release shapes articulation. On mechanical action, the player can feel resistance change as more stops and couplers are engaged. Large chords may become heavier. Electric action feels more even, though timing between remote pipe divisions and the console may still require adjustment.

Hands, Feet and Visual Planning

The organist reads several staves, manages multiple keyboards, plays the pedalboard and prepares stop changes. Feet may alternate toes, use heel-and-toe patterns or cross over one another. Meanwhile, the hands can move between manuals to separate melody, accompaniment and echo effects.

Registration is part of interpretation. A player studies the stop list, listens from the room and decides which colors suit the music. The same piece may require a different registration on every organ because no two instruments share the same scale, speech, balance or acoustic setting.

Why Organists Sometimes Use Assistants

Before modern combination systems, an assistant might pull stops, turn pages or manage mechanical devices during a performance. Assistants are still used when a score demands many rapid changes, when historical consoles lack modern aids or when the organist needs help navigating an unfamiliar instrument.

🎵 Repertoire, Accompaniment and Public Sound

The pipe organ has a large solo repertoire, but it also works as an accompanist and ensemble partner. It can support congregational singing, accompany a choir, join brass or orchestra, play continuo in early music, or provide a quiet sustained background under a solo voice.

Its long-held tone makes it especially suited to counterpoint. Independent lines can remain audible without fading, provided the registration and room do not blur them. The pedalboard adds a bass foundation that can anchor several moving voices above.

Why Transcriptions Work So Well

Organists have long adapted orchestral, choral and keyboard music for the instrument. Multiple manuals can separate instrumental layers, reeds can outline brass-like gestures, flutes can carry woodwind lines, and the pedal can supply double bass or low brass weight. A transcription does not turn the organ into an orchestra. It translates the score into pipe-organ language.

Silence Matters

Because organ sound can continue without natural decay, release becomes expressive. A clean cutoff can shape a cadence as clearly as the beginning of a phrase. In a resonant room, the organist may release early and let the building finish the sound.

🛠 Building, Tuning and Caring for a Pipe Organ

Design Begins with the Room and Musical Role

An organ project starts with questions. How large is the room? Where can the pipes stand? Will the instrument lead singing, teach students, accompany an orchestra or serve recital repertoire? What temperature and humidity patterns affect the building? Is there enough access for tuning and future repairs?

The builder develops a stop list, division layout, wind system, action type and case design around those answers. Structural engineers and architects may be involved because large organs carry substantial weight and need safe service access. Air paths, sound openings and chamber depth can shape the final tone as strongly as decorative appearance.

Pipe Making and Workshop Preparation

Metal pipe makers cast or prepare sheets, plane them to thickness, cut patterns, roll bodies and solder seams. Wooden pipes are cut, jointed and sealed with equal care. Reed makers shape tongues and shallots, then fit resonators. Windchests are drilled and fitted so each valve and channel remains airtight.

Much assembly happens in the workshop, yet the instrument is not finished there. After transport and installation, pipes must be regulated and voiced in the room. Thousands of small adjustments may follow.

Tuning and Temperature

Organ pipes change pitch as air temperature changes. Warmer air makes the speed of sound rise, so flue pipes tend to sound sharper. Reed pipes may move differently because the metal tongue controls pitch. This can create temporary disagreement between pipe families during rapid temperature shifts.

Tuners adjust open metal pipes with tuning slides, scrolls or movable collars. Stopped pipes may use movable stoppers. Reed pipes use tuning wires that alter the vibrating tongue length. Good tuning requires a stable room, patience and knowledge of the instrument’s chosen temperament.

Temperament and Pitch Standard

Not every organ divides the octave in exactly the same way. Equal temperament supports free movement through all keys, while historical temperaments give keys slightly different interval colors. Older instruments may also stand above or below present concert pitch. Performers working with singers or period instruments need to know both pitch level and temperament before rehearsal.

Leather, Dust and Moving Parts

Reservoirs, pneumatic motors and valves often use leather because it bends quietly and seals air. Over many years, leather can dry, crack or stiffen. Dust can interfere with pipe speech, magnets, contacts and small valves. Wooden parts move with humidity. Metal pipes may slump if poorly supported or handled.

Regular playing helps reveal small faults before they spread. Routine care includes tuning, cleaning, action regulation, leather inspection and checking blower or electrical systems. Historic survival depends on informed maintenance rather than constant replacement. The National Music Museum’s restored 1808 Dieffenbach tracker organ, with 306 pipes and a single manual, shows how an early instrument can remain both a museum object and a sounding musical machine.Reference-4✅

🔎 Pipe Organ and Related Keyboard Instruments

Why the Pipe Organ Cannot Be Reduced to a Speaker System

Digital organs can reproduce useful organ-like sounds and may be practical where space, budget or maintenance limits rule out pipes. A pipe organ behaves differently because each note begins as moving air in a physical resonator. Pipe position, room reflections, tiny tuning differences and the interaction of many ranks create a spatial sound field rather than a single amplified point.

That does not make one instrument suitable for every setting. It explains why the experience differs. A pipe organ is heard through architecture.

👂 Listening for the Organ’s Layers

A first-time listener may hear only “large” or “soft.” With a little attention, separate layers appear. Start with the bass: is it a smooth stopped foundation, a clear principal line or a vibrating reed? Then listen to the middle. That is where the harmonic body often sits. Finally, notice the upperwork, which adds edge and definition without always seeming loud on its own.

• Principal chorus: focused, blended and unmistakably organ-like.
• Flute registration: round, hollow, airy or lightly percussive depending on construction.
• String and celeste: narrow tone with gentle beating between slightly detuned ranks.
• Solo reed: a projecting line that stands above accompaniment.
• Full organ: foundations, upperwork, mixtures and reeds combined for maximum tonal breadth.

Listen to note endings as well as beginnings. In a resonant building, the release travels through the room after the pipes stop. That fading tail tells you as much about the architecture as the instrument.
